Место происхождения: | Китай, Чжэцзян |
---|---|
Фирменное наименование: | ZONPACK |
Сертификация: | CE SGS |
Номер модели: | ZH-GD8-200 |
Количество мин заказа: | 1сец |
Цена: | USD+23500-40000+Sets |
Упаковывая детали: | деревянный случай |
Время доставки: | дни 45Воркинг |
Условия оплаты: | L/C, D/A, D/P, T/T, западное соединение |
Поставка способности: | месяц 99+Sets+per |
Тип сумки: | пре-сделанная сумка, сумка молнии, стоит вверх сумка мешка | Экран касания: | 7inch, Weinview |
---|---|---|---|
Скорость: | 25-60bags/минута | Точность: | ±0.5gram |
Рабочая позиция: | 8 положений/6 положений | Размер мешка: | W: 200-300mm L: 200-450mm |
Материал: | 304SS, 316SS | Особенность: | Принятие PLC и экрана касания |
Выделить: | Машина упаковки сумки Premade 0,5 граммов,машина упаковки сумки 450mm Premade |

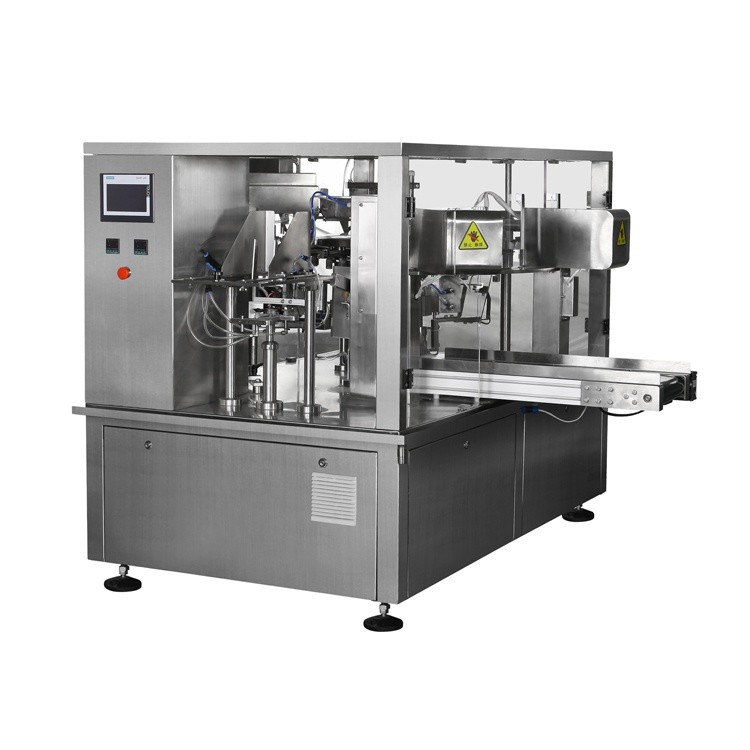

Frequency converter control doypack rotary packing machine for beef jerky biltong package machine
1 . Main function
1 . Automatically check bag open status, it will not fill and seal when bag is not opened fully. It avoids the wasting of bag and raw material and save cost.
2 . Machine working speed can be adjusted continuously with frequency converter
3 . PLC from SIEMENS is adopted, the control system is easy to operated with friendly HMI interface.
4 . Machine will alarm when the air pressure is abnormal and stop working with overload protect and safety device.
5 . Machine can work with dual-fill, filling with two types of material, such as solid and liquid, liquid and liquid.
6 . Machine can work with bag that width range from 100-200mm, by adjusting the width of clips.
7 . Adopting advanced bearing, where no need to add oil and less pollution for product.
8 . Rotary packing machine can work with different filler to pack solid, powder and liquid.
2 . Technical Specification
Model | ZH-G8-200 |
Packing Speed | 25-50 bag/min |
Bag Size (mm) | W: 100-200mm L: 100-350mm |

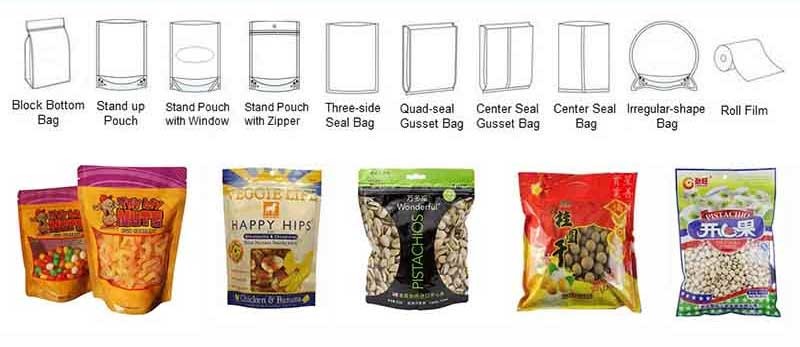

Bag Type |
Flat pouch, Stand up pouch, Stand up pouch with zipper |
Air Consumption | 0.4 m3/min 0.8Ma/ |
Packing Material | POPP/CPP, POPP/VMCPP,BOPP/PE,PET/AL/PE, NY/PE, PET/PET |
Power Parameter | AC380V/50Hz/3KW |
Machine Dimension(mm) | 1770(L) ×1700(W)×1800(H) |
Gross Weight (Kg) | 1200 |
3 . Application
ZH-G8 Rotary packing machine is suitable for automatic packing for grain and solid food, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.

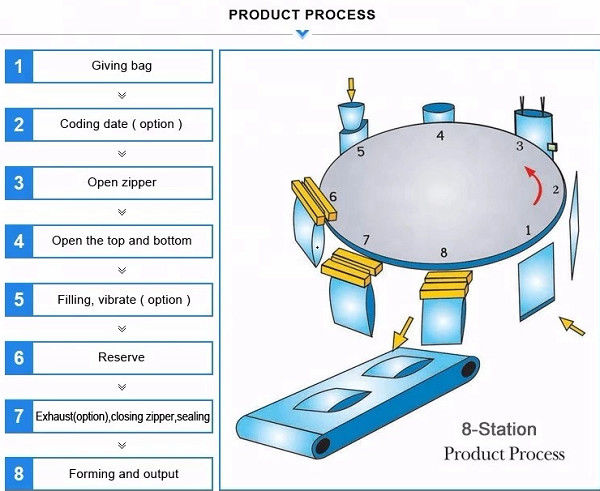

4 . Working process of Pre-made bag Packing Machine
5 . Our Factory
